Here’s a detailed description of the Cisco Catalyst C9300-24P-1E switch:
1. Overview:

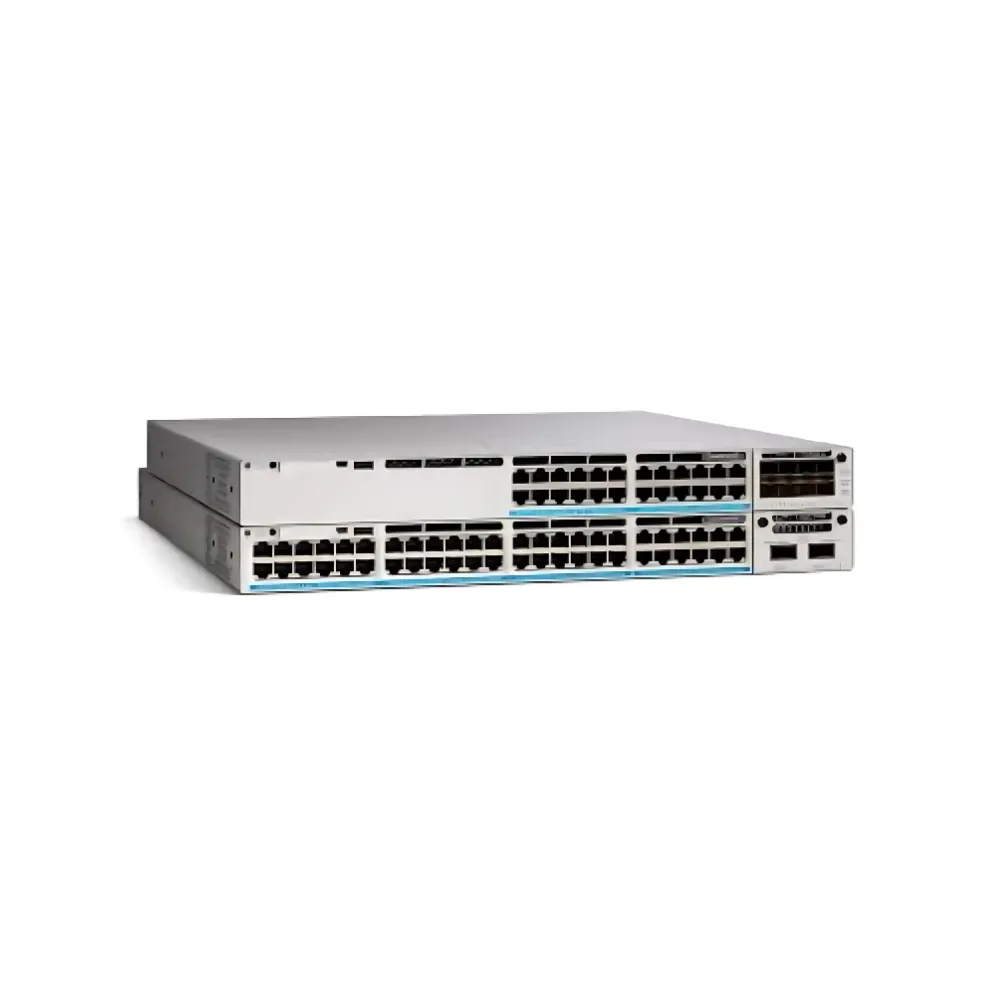

The Cisco Catalyst C9300-24P-1E is a high-performance, stackable network switch designed for enterprise-level networks. It offers 24 PoE+ (Power over Ethernet Plus) ports and 1 Gigabit Ethernet uplink port to meet the growing demands of today’s network environments. This switch is part of the Cisco Catalyst 9300 Series, which is built for high availability, scalability, and security. It is ideal for medium to large-sized businesses or organizations that require efficient, secure, and manageable network infrastructure.
2. 24 PoE+ Ports:
- The C9300-24P-1E comes with 24 Gigabit Ethernet ports, all of which support PoE+ (Power over Ethernet Plus). This allows the switch to provide both data and power to connected devices such as IP phones, wireless access points, surveillance cameras, and other PoE-capable devices.
- PoE+ provides up to 30 watts of power per port, which is sufficient for high-power devices, reducing the need for additional power adapters or outlets, making deployment simpler and more efficient.
3. 1 Gigabit Ethernet Uplink Port:
- The switch includes 1 Gigabit Ethernet uplink port, providing high-speed connectivity to other network devices, routers, or additional switches.
- This uplink port ensures that the switch can easily integrate into existing network infrastructures, supporting both high-bandwidth requirements and long-distance network connections.
4. Cisco IOS XE Software:
- The C9300-24P-1E runs on Cisco IOS XE, a versatile operating system designed for enterprise networks. This software provides advanced features for network management, security, and automation, allowing administrators to manage the network efficiently.
- Cisco IOS XE offers robust security protocols, network segmentation, policy enforcement, and the ability to easily monitor and troubleshoot the network from a centralized dashboard.
5. Stackable Design:
- The C9300-24P-1E is a stackable switch, meaning multiple units can be stacked together to form a single, unified switch system. This feature enhances scalability and provides increased redundancy, so if one unit fails, the others can take over, ensuring continuous operation.
- Stacking allows businesses to easily expand their network capacity as needed without complex reconfigurations, offering a simple, cost-effective solution for growing networks.
6. Advanced Security Features:
- The C9300-24P-1E is equipped with advanced security features, such as 802.1X authentication, MACsec encryption, and TrustSec. These protocols help secure network access, encrypt data traffic, and control which devices are allowed to connect to the network.
- The switch also supports Cisco Identity Services Engine (ISE), providing centralized access control and policy enforcement across the network.
7. High Performance and Reliability:
- Designed for high availability and performance, the C9300-24P-1E offers high-bandwidth connectivity for demanding applications, including video streaming, voice over IP (VoIP), and large-scale data transfer.
- The switch is built with redundant power supply (RPS) support to ensure continuous operation in case of a power failure, increasing network uptime.
8. Energy Efficient:
- The C9300-24P-1E is designed with energy efficiency in mind, supporting Energy Efficient Ethernet (EEE) standards, which help reduce power consumption during periods of low network traffic.
- The switch also integrates with Cisco EnergyWise to monitor and manage the overall energy consumption of the network, helping organizations reduce operational costs while maintaining performance.
9. Cisco DNA Ready:
- The C9300-24P-1E is Cisco DNA ready, meaning it can be integrated with Cisco DNA Center for advanced network automation, analytics, and policy-based management. This cloud-based platform enables IT teams to manage the entire network from a single dashboard, improving operational efficiency and reducing manual configuration errors.
10. Use Cases:
- The C9300-24P-1E is ideal for medium to large-sized businesses that require high-performance, reliable, and secure network infrastructure. It is commonly used in campus networks, enterprise edge, branch offices, and small data centers.
- The PoE+ capabilities make it particularly suitable for environments with numerous IP-based devices (such as phones, cameras, and wireless access points) that need both power and data connectivity.
11. Future-Proofing:
- As a next-generation switch, the C9300-24P-1E supports Wi-Fi 6, IoT devices, and high-bandwidth applications, ensuring that your network is ready for future growth and technology adoption.
- The ability to stack switches provides flexibility, allowing businesses to scale their network as needed without replacing the existing infrastructure.
Summary:
The Cisco Catalyst C9300-24P-1E is a 24-port PoE+ switch designed for enterprise networks that require high performance, reliability, and scalability. It supports 24 Gigabit Ethernet PoE+ ports, which can power devices like IP phones and access points, and includes 1 Gigabit Ethernet uplink port for high-speed connections. The switch is equipped with Cisco IOS XE software for advanced security, automation, and management features. It also supports stacking, energy efficiency, and Cisco DNA Center for centralized network management. Ideal for medium to large businesses, the C9300-24P-1E is built for future-proofing and optimal performance in demanding network environments.
